Funtech - Inno3D GeForce RTX 5060 Twin X2 OC WHITE 8GB (N50602-08D7X-195070W)

Nahajate se: Funtech > Vse kategorije > Računalništvo > Komponente > Grafične kartice > NVIDIA GeForce > RTX 5060

Predstavitev artikla

Dodaj v seznam želja >>

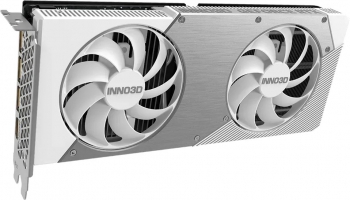

Inno3D GeForce RTX 5060 Twin X2 OC WHITE 8GB (N50602-08D7X-195070W)

Naša cena: 351,54 €

Dodaj v košarico

Že od 11.91 EUR Vaš mesečni obrok

ali

275,91 €

Redna cena:

434,00 €

Spletna cena:

351,54 €

Vaš prihranek:

Popust 19,00% (82,46 €)

Garancija:

2 leti

Dobavljivost:

Dobava 3-10 dni

EAN:

x8886307701145

Naša koda:

VGAII631

Splošni opis:

Model

NVIDIA GeForce RTX 5060

Memory

8GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/s

clock Base

2280MHz

clock Boost

2527MHz

overclock

+30MHz Boost

Cooling

2x Axial-fan (88mm)

TDP/TGP

145W (NVIDIA)

Power connections

1x 8-Pin PCIe

Connectors

1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20

Interface

PCIe 5.0 x16 (x8)

Special features

AI-acceleration, Backplate, NVIDIA GeForce SFF-Ready, white Build compatible (white colouring)

total height

Dual Slot

Dimensions

250x116x41mm (LxWxH)

Type

PCIe card (full height)

PCI slot bracket

full height

AI-computing power (dense)

307 TOPS (FP4), 153.5 TOPS (FP8), 76.75 TOPS (FP16)

AI-computing power (sparse)

614 TOPS (FP4), 307 TOPS (FP8), 153.5 TOPS (FP16)

GPU-Computing power

19.41 TFLOPS (FP16), 19.41 TFLOPS (FP32), 0.3 TFLOPS (FP64)

Chip-data

Chip-Architecture

Blackwell (from 2025/Q1)

Chip-title

GB206-250-A1

Chip-Configuration

30SM (3840SP / 120TMU / 48ROP), 30 RT Cores, 120 Tensor Cores, 32MiB L2 cache

Chip-Manufacturing Process

TSMC 5nm "NVIDIA 4N"

Chip size

181mm², monolithisch, 21.9 Mio. Transistoren

Chip-functions

Raytracing (4th Gen NVIDIA RTX, 48 TFLOPS), NVIDIA Tensor (5th Gen, 76.75 TOPS), HDCP 2.3

API-support

DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8

Transcoding-Engine

1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen)

encoding

AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)

decoding

AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1

Tehnične lastnosti:

Processor

Processor frequency

2280 MHz

Graphics processor family

NVIDIA

CUDA

Yes

Parallel processing technology support

Not supported

Graphics processor

GeForce RTX 5060

CUDA cores

3840

Maximum displays per videocard

Processor boost clock speed

2527 MHz

Maximum resolution

7680 x 4320 pixels

Memory

Number of pipelines

Graphics card memory type

GDDR7

Memory bandwidth (max)

448 GB/s

Discrete graphics card memory

8 GB

Data transfer rate

28 Gbit/s

Memory bus

128 bit

Design

Number of slots

Number of fans

2 fan(s)

Product colour

White , Grey

Fan diameter

8.8 cm

Cooling type

Active

SFF ready

Yes

Power

Supplementary power connectors

1x 8-pin

Minimum system power supply

550 W

Weight & dimensions

Length

250 mm

Height

116 mm

Depth

41 mm

System requirements

Other operating systems supported

FreeBSD

Windows operating systems supported

Windows 11 , Windows 10

Linux operating systems supported

Yes

Performance

NVIDIA G-SYNC

Yes

OpenGL version

4.6

TV tuner integrated

HDCP version

2.3

Dual Link DVI

HDCP

Yes

DirectX version

12 Ultimate

NVIDIA Ansel

Yes

Overclocked (OC) edition

Yes

Packaging data

Package type

Box

Ports & interfaces

DisplayPorts quantity

HDMI ports quantity

Interface type

PCI Express 5.0

DisplayPort version

2.1b

HDMI version

2.1b
