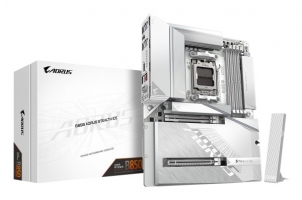

GIGABYTE B850 AORUS Stealth ICE
GIGABYTE B850 AORUS Stealth ICE
Naša cena:
304,08 €
Že od 10.32 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
375,41 €
Spletna cena:
304,08 €
Vaš prihranek:
Popust 19,00% (71,33 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331873103
Naša koda:
MBOGI291
Splošni opis:
GIGABYTE B850 AORUS STEALTH ICE Motherboard - AMD Ryzen 9000 Series CPUs, 14+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0 M.2, WIFI 7, 5 GbE LAN, USB 3.2 Gen 2 548591
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Compatible processor series
AMD Ryzen 9000 Series
,
AMD Ryzen 7000 Series
,
AMD Ryzen 8000 Series
Supported processor sockets
Socket AM5
Processor socket
Socket AM5
Processor manufacturer
AMD
Graphics
On-board graphics card
No
Parallel processing technology support
Not supported
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
DirectX version
12.0
Features
Cooling type
Passive
Windows operating systems supported
Windows 11 x64
Component for
PC
Motherboard form factor
ATX
PC health monitoring
Water cooling
,
Temperature
,
Fan
,
Voltage
Audio chip
Realtek ALC897
Motherboard chipset family
AMD
Motherboard chipset
AMD B850
Product colour
White
Power source type
ATX
Audio output channels
7.1 channels
Memory
Supported memory clock speed (max)
8200 MHz
Number of memory slots
4
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Supported memory clock speeds
6000
,
5200
,
6400
,
6600
,
7000 MHz
,
6200
,
5600 MHz
,
7200
,
4400
,
5800
,
8000
,
8200
,
4800
,
6800 MHz
,
7400
,
7600
,
7800
,
7950
,
7900
Unbuffered memory
Yes
Maximum internal memory
256 GB
Weight & dimensions
Width
305 mm
Height
35 mm
Depth
244 mm
Network
Wi-Fi
Yes
Bluetooth version
5.4
Wi-Fi standards
Wi-Fi 5 (802.11ac)
,
Wi-Fi 7 (802.11be)
,
802.11b
,
Wi-Fi 6E (802.11ax)
,
802.11g
,
Wi-Fi 4 (802.11n)
,
802.11a
,
Wi-Fi 6 (802.11ax)
Ethernet interface type
5 Gigabit Ethernet
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Ethernet LAN
Yes
WLAN controller model
Realtek RTL8922AE
Bluetooth
Yes
LAN controller
Realtek RTL8126
Internal I/O
Number of noise detection headers
1
Number of temperature sensor headers
2
Number of water pump connectors
3
Number of chassis fan connectors
6
RGB LED pin header
Yes
Front panel connector
Yes
EPS power connector (8-pin)
Yes
Peripheral (Molex) power connectors (4-pin)
1
TPM connector
Yes
CPU fan connector
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
Number of EPS power connectors (8-pin)
1
Number of CPU fan connectors
2
USB 3.2 Gen 2x2 connectors
1
ATX Power connector (24-pin)
Yes
Number of SATA III connectors
2
USB 2.0 connectors
2
Front panel audio connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
BIOS
ACPI version
5.0
Clear CMOS jumper
Yes
BIOS memory size
512 Mbit
Desktop Management Interface (DMI) version
2.7
BIOS type
UEFI AMI
System Management BIOS (SMBIOS) version
2.7
Packaging data
Package height
92 mm
Package width
310 mm
Package depth
340 mm
Package weight
4.14 kg
Packaging content
Screws included
Yes
Antenna included
Yes
Batteries included
Yes
Storage controllers
Number of HDDs supported
2
RAID levels
1
,
0
,
10
,
5
Number of storage drives supported
6
Supported storage drive types
HDD & SSD
RAID support
Yes
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI ports quantity
1
Digital audio optical out
1
Line-in
Yes
Headphone outputs
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
WiFi-AP antenna jack
2
HDMI version
2.1
Ethernet LAN (RJ-45) ports
1
S/PDIF out port
Yes
USB 2.0 ports quantity
4
Expansion slots
PCI Express x16 (Gen 5.x) slots
1
4th M.2 largest key size
22110
2nd M.2 largest key size
22110
1st M.2 largest key size
25110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
1st M.2 highest PCI Express generation
5.0
4th M.2 highest PCI Express generation
4.0
2nd M.2 highest PCI Express generation
5.0
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
4
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells
1
Battery weight
3 g
Battery type
CR2032
Lithium weight per battery
0.07 g
Other features
Weight
3.63 kg
Logistics data
Products per shipping (inner) case
1 pc(s)
Country of origin
China
