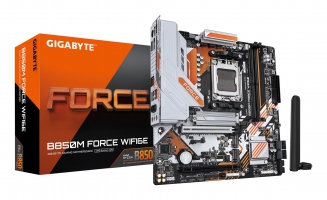

GIGABYTE B850M Force WIFI6E
GIGABYTE B850M Force WIFI6E
Naša cena:
155,96 €
Že od 14.66 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
192,54 €
Spletna cena:
155,96 €
Vaš prihranek:
Popust 19,00% (36,58 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331874308
Naša koda:
MBOGG358
Splošni opis:
Motherboard AMD B850 Matx/B850M Force B850M FORCE WF6E
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Supported processor sockets
Socket AM5
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series
,
AMD Ryzen 9000 Series
,
AMD Ryzen 8000 Series
Processor manufacturer
AMD
Graphics
DirectX version
12.0
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
Features
PC health monitoring
Temperature
,
Fan
,
Voltage
,
Water cooling
Audio output channels
7.1 channels
Motherboard chipset
AMD B850
Audio chip
Realtek ALC897
Product colour
Dark brown
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 11 x64
,
Windows 10 x64
Component for
PC
Cooling type
Passive
Power source type
ATX
Memory
Unbuffered memory
Yes
Supported memory clock speeds
5200
,
8400 MHz
,
8600 MHz
,
6200
,
6666
,
8000
,
6800
,
7600 MHz
,
7800
,
5600
,
7200
,
6600
,
9200 MHz
,
7000
,
8200 MHz
,
4400
,
8800 MHz
,
6000
,
9600
,
6400
,
4800
Maximum internal memory
128 GB
Supported memory clock speed (max)
9600 MHz
Number of memory slots
2
Supported memory types
DDR5-SDRAM
Memory slots type
DIMM
ECC сompatibility
Non-ECC
Maximum internal memory per slot
64 GB
Memory channels
Dual-channel
Weight & dimensions
Height
35 mm
Depth
244 mm
Width
244 mm
Network
Bluetooth
Yes
LAN controller
Realtek RTL8125
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Ethernet LAN
Yes
WLAN controller model
MediaTek MT7902
Bluetooth version
5.3
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi standards
Wi-Fi 4 (802.11n)
,
802.11b
,
802.11a
,
Wi-Fi 6 (802.11ax)
,
Wi-Fi 6E (802.11ax)
,
802.11g
,
Wi-Fi 5 (802.11ac)
Wi-Fi
Yes
Internal I/O
TPM connector
Yes
Front panel connector
Yes
CPU fan connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
EPS power connector (8-pin)
Yes
ATX Power connector (24-pin)
Yes
12V power connector
Yes
Number of chassis fan connectors
2
USB 2.0 connectors
2
Number of CPU fan connectors
2
Number of RGB LED pin headers
4
RGB LED pin header
Yes
Number of water pump connectors
2
Number of EPS power connectors (8-pin)
1
BIOS
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
BIOS type
UEFI AMI
ACPI version
5.0
Packaging data
Package width
270 mm
Package depth
268 mm
Package weight
1.4 kg
Package height
68 mm
Packaging content
Batteries included
Yes
Screws included
Yes
Antenna included
Yes
Storage controllers
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types
HDD & SSD
RAID levels
10
,
5
,
0
,
1
RAID support
Yes
Number of storage drives supported
7
Number of HDDs supported
4
Rear panel I/O ports
DisplayPort version
1.4
DisplayPorts quantity
1
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
1
WiFi-AP antenna jack
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Headphone outputs
1
PS/2 ports quantity
1
Line-in
Yes
Microphone in
Yes
HDMI ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
HDMI version
2.1
Expansion slots
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
Number of M.2 (M) slots
3
1st M.2 largest key size
2280
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
Battery
Battery weight
3 g
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery type
CR2032
Other features
Weight
1.22 kg
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
