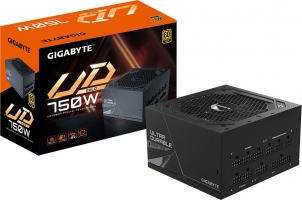

GIGABYTE UD750GM 750W ATX 2.31 GP-UD750GM
GIGABYTE UD750GM 750W ATX 2.31 GP-UD750GM
Naša cena:
100,88 €
Že od 18.49 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
126,10 €
Spletna cena:
100,88 €
Vaš prihranek:
Popust 20,00% (25,22 €)
Garancija:
Najmanj 1 leto, glej opis
Dobavljivost:
Dobava 1-2 dni
EAN:
4719331552671
Naša koda:
PSUGB991
Splošni opis:
Moč: 750W
Ventilator: 1×12cm Hydraulic Bearing HYB
Priključki:
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1
500mm+120mm+120mm+150mm *1
Teža: ~2kg
Dimenzije: 150×140×86 mm
Primeren za ATX 12V v2.31 sisteme
Dodatno: Ultra Durable Japanese capacitors, Enhanced thermal solution, 80 Plus Gold certified, OVP/OPP/SCP/UVP/OCP/OTP protection, Active PFC, Flat kabli
Tehnične lastnosti:
Design
Fan location
Top
Product colour
Black
Cooling type
Active
Number of fans
1 fan(s)
On/off switch
Yes
Fan diameter
12 cm
Power
Combined power (+3.3V)
105 W
Combined power (+12V)
732 W
Power Factor Correction (PFC) type
Active
Max output current (+5V)
20 A
Combined power (+5V)
105 W
Max output current (+12V)
61 A
Max output current (-12V)
2.3 A
Combined power (+5Vsb)
15 W
Max output current (+5Vsb)
3 A
Hold time
16 ms
Max output current (+3.3V)
20 A
Combined power (-12V)
3.6 W
AC input frequency
50 - 60 Hz
Power protection features
Under voltage
,
Over current
,
Short circuit
,
Over voltage
,
Over power
,
Overheating
Total power
750 W
AC input voltage
100 - 240 V
Efficiency
90%
Input current
12 A
Weight & dimensions
Depth
140 mm
Height
86 mm
Width
150 mm
Performance
Purpose
PC
ATX version
2.31
80 PLUS certification
80 PLUS Gold
Power supply unit (PSU) form factor
ATX
Mean time between failures (MTBF)
100000 h
Bearing technology
HYB
Packaging content
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Ports & interfaces
Peripheral (Molex) power cable length
120 mm
,
500 mm
ATX power connector (20+4 pin)
Yes
SATA power cable length
150
,
600 mm
,
450
,
300 mm
CPU power cable length
60 cm
Number of SATA power connectors
8
EPS power connector (4+4 pin)
Yes
PCI Express power cable length
60 cm
Motherboard power connector
20+4 pin ATX
Floppy drive power connector
1
Motherboard power cable length
61 cm
Floppy disk drive cable length
15 cm
CPU power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
4
Cabling type
Fully-Modular
Floppy disk drive connector
Yes
Peripheral (Molex) power connectors (4-pin)
3
Logistics data
Harmonized System (HS) code
84733020
