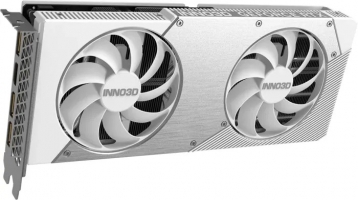

INNO3D GeForce RTX 5060 Ti Twin X2 OC White 8GB (N506T2-08D7X-193075W)

Naša cena: 472,43 €

Dodaj v košarico

Že od 10.36 EUR Vaš mesečni obrok

ali

275,91 €

Redna cena:

583,26 €

Spletna cena:

472,43 €

Vaš prihranek:

Popust 19,00% (110,83 €)

Garancija:

2 leti

Dobavljivost:

Dobava 3-10 dni

EAN:

x8886307700759

Naša koda:

VGAII634

Splošni opis:

Model

NVIDIA GeForce RTX 5060 Ti

Memory

8GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/s

clock Base

2235MHz

clock Boost

2602MHz

overclock

+30MHz Boost

Cooling

2x Axial-fan (88mm)

TDP/TGP

180W (NVIDIA)

AI-computing power (INT8)

>380 TOPS (NVIDIA), 759 TOPS (INNO3D)

GPU-Computing power

23.98 TFLOPS (FP16), 23.98 TFLOPS (FP32), 0.37 TFLOPS (FP64)

Power connections

1x 8-Pin PCIe

Connectors

1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20

Interface

PCIe 5.0 x16 (x8)

Special features

AI-acceleration, Backplate, white Build compatible (white colouring), NVIDIA GeForce SFF-Ready

total height

Dual Slot

Dimensions

250x116x41mm (LxWxH)

Type

PCIe card (full height)

PCI slot bracket

full height

Chip-data

Chip-Architecture

Blackwell (from 2025/Q1)

Chip-title

GB206-300-A1

Chip-Configuration

36SM (4608SP / 144TMU / 48ROP), 36 RT Cores, 144 Tensor Cores, 32MiB L2 cache

Chip-Manufacturing Process

TSMC 5nm "NVIDIA 4N"

Chip size

181mm², monolithisch, 21.9 Mio. Transistoren

Chip-functions

Raytracing (4th Gen NVIDIA RTX, 72 TFLOPS), NVIDIA Tensor (5th Gen, 380 TOPS), HDCP 2.3

API-support

DirectX 12 Ultimate (12_2) / CUDA 12.8 / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.8

Transcoding-Engine

1x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen)

encoding

AV1, H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support), H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)

decoding

AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2, MPEG-1

Tehnične lastnosti:

Processor

CUDA

Yes

Graphics processor

GeForce RTX 5060 Ti

Graphics processor family

NVIDIA

Processor frequency

2407 MHz

Maximum displays per videocard

CUDA cores

4608

Parallel processing technology support

Not supported

Maximum resolution

7680 x 4320 pixels

Processor boost clock speed

2602 MHz

Memory

Graphics card memory type

GDDR7

Memory bandwidth (max)

448 GB/s

Number of pipelines

Discrete graphics card memory

8 GB

Data transfer rate

28 Gbit/s

Memory bus

128 bit

Design

Number of slots

Number of fans

2 fan(s)

Cooling type

Active

Product colour

White

Fan diameter

8.8 cm

SFF ready

Yes

Power

Supplementary power connectors

1x 8-pin

Minimum system power supply

650 W

Weight & dimensions

Length

250 mm

Height

116 mm

Depth

41 mm

System requirements

Other operating systems supported

FreeBSD

Windows operating systems supported

Windows 11 , Windows 10

Linux operating systems supported

Yes

Performance

OpenGL version

4.6

NVIDIA G-SYNC

Yes

Virtual Reality (VR) ready

Yes

Dual Link DVI

HDCP version

2.3

HDCP

Yes

NVIDIA Ansel

Yes

DirectX version

12 Ultimate

TV tuner integrated

Overclocked (OC) edition

Yes

Packaging data

Package type

Box

Ports & interfaces

HDMI ports quantity

Interface type

PCI Express 5.0

DisplayPort version

2.1b

DisplayPorts quantity

HDMI version

2.1b
