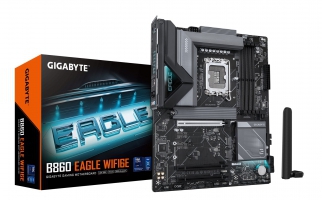

GIGABYTE B860 EAGLE LGA1851 DDR5 ATX WiFi6E (B860 EAGLE WIFI6E)
GIGABYTE B860 EAGLE WIFI6E ATX (B860 EAGLE WIFI6E)
Naša cena:
170,30 €
Že od 16.07 EUR
Vaš mesečni obrok
ali
x
275,91 €
Redna cena:
210,25 €
Spletna cena:
170,30 €
Vaš prihranek:
Popust 19,00% (39,95 €)
Garancija:
2 leti
Dobavljivost:
Dobava 3-10 dni
EAN:
x4719331866822
Naša koda:
MBOGG406
Splošni opis:
GIGABYTE B860 EAGLE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2 B860 EAGLE WIFI6E
Tehnične lastnosti:
Technical details
Warranty period
3 year(s)
Processor
Supported processor sockets
LGA 1851
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel® Core™ Ultra (Series 1)
,
Intel Core Ultra (Series 2)
Graphics
Maximum resolution
4096 x 2160 pixels
DirectX version
12.0
Parallel processing technology support
Not supported
HDCP
Yes
Features
Product colour
Dark brown
PC health monitoring
Water cooling
,
Temperature
,
Fan
,
Voltage
Cooling type
Passive
Audio chip
Realtek ALC897
Power source type
ATX
Audio output channels
7.1 channels
Motherboard chipset
Intel B860
Windows operating systems supported
Windows 11 x64
,
Windows 10 x64
Motherboard chipset family
Intel
Motherboard form factor
ATX
Component for
PC
Memory
Maximum internal memory
256 GB
Unbuffered memory
Yes
Memory channels
Dual-channel
Supported memory clock speeds
9066 MHz
,
6400
,
5600 MHz
Number of memory slots
4
Supported memory types
DDR5-SDRAM
Memory slots type
DIMM
ECC сompatibility
ECC & Non-ECC
Maximum internal memory per slot
64 GB
Supported memory clock speed (max)
9066 MHz
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
35 mm
Network
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
802.11g
,
Wi-Fi 4 (802.11n)
,
802.11a
,
Wi-Fi 6 (802.11ax)
,
Wi-Fi 6E (802.11ax)
,
Wi-Fi 5 (802.11ac)
,
802.11b
LAN controller
Realtek RTL8125D
Bluetooth
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi
Yes
Bluetooth version
5.3
WLAN controller model
Intel Wi-Fi 6E AX211
Ethernet LAN
Yes
Internal I/O
Number of SATA III connectors
4
Number of chassis fan connectors
4
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
TPM connector
Yes
Front panel connector
Yes
USB 2.0 connectors
2
Serial port headers
1
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
S/PDIF out connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
RGB LED pin header
Yes
Number of water pump connectors
3
Number of CPU fan connectors
2
Number of RGB LED pin headers
4
Number of EPS power connectors (8-pin)
1
BIOS
ACPI version
5.0
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
System Management BIOS (SMBIOS) version
2.7
Desktop Management Interface (DMI) version
2.7
Packaging data
Package width
335 mm
Package height
80 mm
Package depth
270 mm
Package weight
1.92 kg
Packaging content
Screws included
Yes
Batteries included
Yes
Antenna included
Yes
Storage controllers
RAID support
Yes
RAID levels
1
,
0
,
10
,
5
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Number of storage drives supported
7
Number of HDDs supported
4
Rear panel I/O ports
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
PS/2 ports quantity
1
DisplayPort version
2.1
USB 2.0 ports quantity
4
HDMI version
2.1
DisplayPorts quantity
1
Line-in
Yes
Headphone outputs
1
Microphone in
Yes
WiFi-AP antenna jack
2
USB 3.2 Gen 2x2 Type-C ports quantity
1
Expansion slots
Number of M.2 (M) slots
3
PCI Express x16 (Gen 4.x) slots
2
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
25110
2nd M.2 largest key size
25110
2nd M.2 highest PCI Express generation
4.0
PCI Express x16 (Gen 5.x) slots
1
Battery
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Number of battery cells
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Other features
Weight
1.72 kg
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Priročniki:
